    Product Details:

    Place of Origin: China
    Brand Name: Techsafe
    Certification: ISO,CE
    Model Number: SH712BF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: 1
    Packaging Details: CTN
    Delivery Time: 7 days
    Payment Terms: T/T,Western union
    Supply Ability: 200pcs/week
    Contact Now
    Detailed Product Description
    Material: SS304(carbon Steel Or Ss316L Is Optional) Product Name: Safety Shower And Eye Wash,Laboratory Safety PPE Emergency Shower Eye Wash,Stainless Steel Emergency Shower & Eye Wash
    Original Water: Clean Or Leached Water Application: Laboratory,lab Equipment,School,oil,Tap Higher Education
    Name: Manufacturer China Vertical Safety Shower And Eye Wash Station Color: Green/ Yellow/ Silver
    Function: Safety Shower And Eyewash Station Hydraulic Pressure: 0.2~0.6MPA
    Usage: Clean And Protect Eyes,Eyewash & Shower Option For Almost Every Industrial Situation,Cleanroom Protection Weight: 15kgs
    Standard: ANSI Z358.1-2009,ANSIZ 358.1-1998 Flow Control: Eyewash Flow≥11.4L/Min,shower Flow≥75.5L/Min,80-100L/ Min
    Feature: Strong Corrosion Resistance&easy Operation Maximum Water Pressure: 7 Bar
    Working Temperature: 0℃-55℃ Surface Treatment: Polish Or High Gloss Epoxy Powder Coat
    Sprayheads With Protective Covers: Yes

    More details,pls visit  www.labppe.com

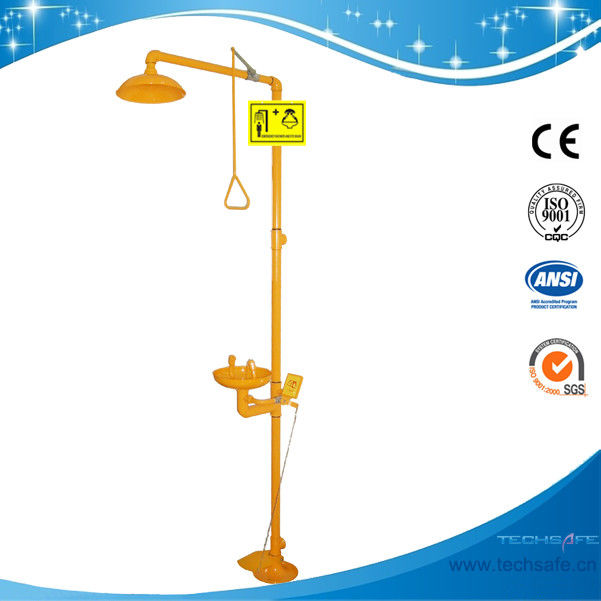

    SH712BF-Galvanization Iron Safety shower & eyewash station,Foot pedal Carbon Steel eyewash


    SH712BF-Galvanization Iron Safety shower & eyewash station,Foot pedal Carbon Steel eyewash

     Item no.:SH712B(SH712BR)
    Product name:Safety shower & eyewash station,Carbon steel,yellow color
    Material:Carbon steel
    Coating: High gloss epoxy powder coating
    Shower: 1"IPS valve, hands-free stay-open valve activates in 1 second for body rinse
    Eye Wash: 1/2"valve, ergonomically designed for eyes, face, and hands wash, hands-free
    Spray Head: Nylon, remove impurities from water
    Water supply and outlet:1"IPS.
    Hydraulic pressure: 0.2MPA~0.8MPA

    SH712BF-epoxy powder coating Galvanization Iron Safety shower eyewash station Foot pedal Carbon Steel eyewash hands wash



    Emergency shower,Eyewash,Personal Protective Equipment:Emergency shower & Safety eye wash.OSHA,ANSI  Z358.1-2004,CE certificate.ISO9001:2008.





    SH712BF-epoxy powder coating Galvanization Iron Safety shower eyewash station Foot pedal Carbon Steel eyewash hands wash

    SH712BF-epoxy powder coating Galvanization Iron Safety shower eyewash station Foot pedal Carbon Steel eyewash hands wash

    SH712BF-epoxy powder coating Galvanization Iron Safety shower eyewash station Foot pedal Carbon Steel eyewash hands wash

    SH712BF-epoxy powder coating Galvanization Iron Safety shower eyewash station Foot pedal Carbon Steel eyewash hands washSH712BF-epoxy powder coating Galvanization Iron Safety shower eyewash station Foot pedal Carbon Steel eyewash hands washSH712BF-epoxy powder coating Galvanization Iron Safety shower eyewash station Foot pedal Carbon Steel eyewash hands wash



    packing list



    Please check the fittings according to the table below. If there is damage or the quantity is not correct please contact the distributor in your area or contact our company directly, you will get prompt response.





    NO. Name Quantity
    1 Sprayers head 1set
    2 Drench hose 1set
    3 Up part 1set
    4 Down part 1set
    5 Bottom Bracket 1pc
    6 Eye Wash Basin 1set
    7 Eye Wash Sprayer 1set
    8 Pull rob 1set
    9 Push board 1pc
    10 Spare parts 1bag





    *Usage

    The emergency eye washer have already been adopted extensively by the most factories and the laboratories of the developed industrial countries of foreign countries,it is the indispensable apparatus of the security and the labour protection. It can make use of reducing the injure of acid,alkali, organic matter and other poisonous corrosive material. It can be extensively apply to petrochemical industry chemical industry, semiconductor industry, medical manufacturing industry, etc.



    *Main function parameters

    Pressure Flux L/Min Temperature

    Nominal

    pressure

    Seal

    pressure

    Working

    pressure

    Shower

    Eye

    wash

    Tepid water
    0.4 0.45 0.20-0.80 ≥75.5 ≥11

    Choosing these data is considering the hurt to the skin, eye(s), when accidents happen.



    *Structure

    1. The ceramic and ball valve controls spray and eye wash respectively. It is easily operate and you may assure the quality.

    2. The spray head: using the SS304, coming to incorporate, in-built the spumes instrument, having filtration cotton and dust shield, the dust cup can clean the dust usually, removed automatically when eye wash is operate, to debase the hydraulic pressure when to be open abruptly, so as to protect eyes.



    *Main material

    1.coating:yellow,green,red

    2.Pipe:galvanization steel pipe with resistant to rust in the inside of pipe.

    3.eye wash bowl and shower sprayer head :ABS.



    *Installation and maintenance

    1. You should check the type of products, nstruction and the packing list for another time.

    2. The location of the emergency equipment should be installed within 10 seconds walking time or 15 meters from the hazard.

    3. Assembling the various components referring to sketch map, the contaction between various components needed to wind sealing belt, connected water source according to the diameter of inlet pipeline and outline pipeline.

    4. After connecting the drain pipe, to see whether it moves well.





    *Method of application:

    1. Please pull down the pull rob, when you need shower, and the shower sprayer will open, when push up the pull rob, the shower sprayer will shut-off.

    2. Please push the board clockwise, when you need eye washing, and the eye wash sprayer will work; when pullback the board widdershins, the eye wash sprayer will shut-off.



    *Maintenance

    1. This facility is just used for emergency washing, do not use for shower. Please check the facility according to the rules and regulars. Make sure the facility will work well when there are accidences.

    2. Activate shower at least weekly, to ensure the equipment dependability and validity. This equipment can not provide medical treatment; it can just reduce the hurt to the minimum degree by washing.

    3. When an accident happens, please decide the showering time according to the hurt and prepare the medical treatment.



    *The conk out and solutions

    No. Conk out Cause Solution
    1

    The shower outlet

    flux is small

    A the diameter of inlet pipe is small

    B the filter has foreign objects

    A change the inlet pipe

    B remove the foreign objects

    2

    The eye wash sprayer

    outlet flux is small

    A the adjustment rob is overdo

    B the adjustment valve is blocked

    A turn the rob anti-clockwise

    B wash the valve

    3 The eye wash sprayer outlet flux is large The adjustment rob is under-do Turn the rob clockwise
    4 The seep in the basin is more The outlet is blocked Remove the foreign object
