SH712BSF-emergency shower eyewash Foot pedal SUS304 Safety shower & eyewash station,SS304 emergency shower Eyewash

SH712BSF-emergency shower eyewash Foot pedal SUS304 Safety shower & eyewash station,SS304 emergency shower Eyewash

    • SH712BSF-emergency shower eyewash Foot pedal SUS304 Safety shower & eyewash station,SS304 emergency shower Eyewash
    • SH712BSF-emergency shower eyewash Foot pedal SUS304 Safety shower & eyewash station,SS304 emergency shower Eyewash
    • SH712BSF-emergency shower eyewash Foot pedal SUS304 Safety shower & eyewash station,SS304 emergency shower Eyewash
    • SH712BSF-emergency shower eyewash Foot pedal SUS304 Safety shower & eyewash station,SS304 emergency shower Eyewash
    • SH712BSF-emergency shower eyewash Foot pedal SUS304 Safety shower & eyewash station,SS304 emergency shower Eyewash
  • SH712BSF-emergency shower eyewash Foot pedal SUS304 Safety shower & eyewash station,SS304 emergency shower Eyewash

    Product Details:

    Place of Origin: China
    Brand Name: Techsafe
    Certification: ISO,CE
    Model Number: SH712BSf

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: 1
    Packaging Details: CTN
    Delivery Time: 7 days
    Payment Terms: T/T,Western union
    Supply Ability: 200pcs/week
    Contact Now
    Detailed Product Description
    Material: SS304(carbon Steel Or Ss316L Is Optional) Product Name: Safety Shower And Eye Wash
    Original Water: Clean Or Leached Water Application: Lab Equipment
    Name: Safety Emergency Body Shower Eye Wash Station Color: Green/ Yellow/ Silver
    Function: Safety Shower And Eyewash Station Hydraulic Pressure: 0.2MPA-0.6MPA
    Usage: Eyewash & Shower Option For Almost Every Industrial Situation Weight: 15kgs
    Standard: ANSI Z358.1-2009,ANSIZ 358.1-1998 Flow Control: Eyewash Flow≥11.4L/Min,shower Flow≥75.5L/Min
    Feature: Strong Corrosion Resistance&easy Operation,Valve Can Be Fully Opened Within 1 Second By Hand Maximum Water Pressure: 7 Bar
    Working Temperature: 0℃-55℃ Surface Treatment: Polish Or High Gloss Epoxy Powder Coat
    Sprayheads With Protective Covers: Yes

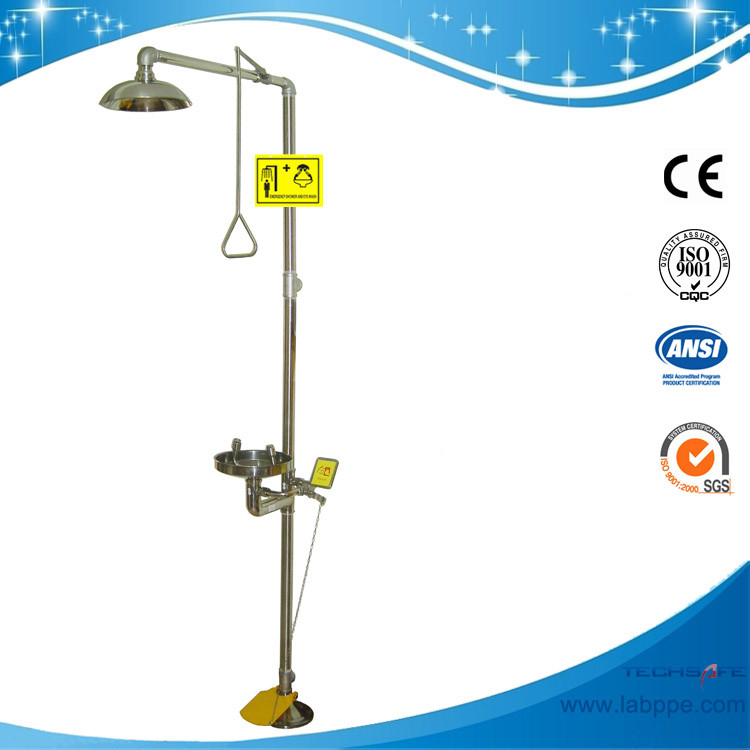

    SH712BSF-Foot pedal SUS304 Safety shower & eyewash station,SS304 emergency shower Eyewash
    Item no.:
    SH712BSF
    Product name:Foot pedal SUS304 Safety shower & eyewash station,SS304 emergency shower Eyewash
    Material:304 stainless steel,seamless explosion proof tube

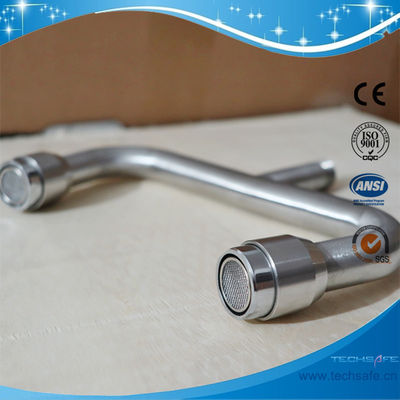

    Sprayer head:,has dust shield cap,can be removed when eye wash operated
    Bowl:ø300mm
    Shower head:ø250mm
    Valve:eye wash-1/2" & shower-1" ball valve;activated in 1 second
    Pressure:0.2-0.6Mpa
    SH712BSF-emergency shower eyewash Foot pedal SUS304 Safety shower & eyewash station,SS304 emergency shower Eyewash
    More details,pls visit  www.labppe.com
    SH712BSF-emergency shower eyewash Foot pedal SUS304 Safety shower & eyewash station,SS304 emergency shower EyewashSH712BSF-emergency shower eyewash Foot pedal SUS304 Safety shower & eyewash station,SS304 emergency shower EyewashSH712BSF-emergency shower eyewash Foot pedal SUS304 Safety shower & eyewash station,SS304 emergency shower EyewashSH712BSF-emergency shower eyewash Foot pedal SUS304 Safety shower & eyewash station,SS304 emergency shower EyewashSH712BSF-emergency shower eyewash Foot pedal SUS304 Safety shower & eyewash station,SS304 emergency shower EyewashSH712BSF-emergency shower eyewash Foot pedal SUS304 Safety shower & eyewash station,SS304 emergency shower Eyewash

    Emergency shower,Eyewash,eye wash,Eye wash stations,eye washing,safety showers,eye wash solution,bradley eye wash,Emergency eye wash station,Emergency safety shower,Eye safety,eye washer,
    Personal Protective Equipment:Emergency shower & Safety eye wash,Drench shower,Safety shower,Face wash bath,Eyewash station,Emergency shower.OSHA,ANSI  Z358.1-2009,CE certificate.ISO9001:2008.

    Technical Instructions

    The emergency shower device and eyewash, which is applied for accident rescue, can quickly wash away the harmful substances adhered to human body through quickly shower and rinse with large amount of water, thereby reducing the degree of damage as an emergency treatment. It is also an economical and feasible way of wash and disinfection. Please read the operating manual before use.


    • Technical parameters
    • Product type: circulating water eye wash
    • Position layout: indoor type/outdoor type
    • Product model: SH710/1/2 series
    • Fluid: drinking water or fire-fighting water
    • Temperature: environment temperature
    • Designed pressure: 0.6 Mpa(g)
    • Operating pressure:0.2 Mpa(g)
    • Water inlet connection: inlet size and connection DN32(G 1-1/4")
    • Outline dimension: details as per the drawing
    • Flow: the operating pressure of accident eyewash is 0.2Mpa, the working pressure of water supply system at the most negative point is 0.2Mpa, the flow of the eye wash nozzle is 12-18L/min, the water height is less than 203mm, and the water flow rate is no damage to the eye; the flow of the shower is 120/180L /min, the water diameter of the shower is not less than 508mm at the height of 1524mm away from the user stands, and the shower lasts for more than 15 minutes.
    • Accessories:(1). 304 stainless steel pipe; (2).pipeline accessories; (3). 2 nozzles; (4). 304 stainless steel valve; (5). 304 base; (6). 304stainless steel eyewash basin; (7).304 shower tray.
    • Material and size: 304 stainless steel. Wall thickness:3mm.
    • Inlet and outlet size:inlet size is DN32, 1000mm away from the ground; the circulating outlet size is DN32, 2430MM away from the ground; connection: DN32 threaded connection, bottom vent type. Drain size is DN32, 150MM away from the ground.
    • Dust cover: Dust cover that can be washed away and can make 304 reusable is set at the eyewash nozzle.
    • The control switch or valve of the shower device and the eyewash nozzle can quickly start within 1 second.
    • The shower device of the eyewash can be continuously used, and the height of the shower rod is within 1733m away from the user stands.
    • Signs: The eyewash is with push plate and safety signs.
    • Operating standards: conformed to US ANSIZ358.1-2009 requirements (standards).
    • Appearance material: 304 stainless steel.
    • Test and inspection: (1) factory test: a. pressure penetration test;

    b. visual inspection of appearance;
    (2) Performance test: a. eyewash flow of 12-18L/min test;
    b. product dimension inspection;
    c. designed pressure of 0.5Mpa(g) air hydro test;
    d. the eyewash spaying last for 15 minutes without spill.

    • Using environment

    1. Where splashes dangerous substances, such as chemicals, dangerous goods, hazardous liquid, solid, etc.
    2. The environment with pollution.

    • Where burning may occur.
    • Please take anti-freezing measures for the pipeline in cold areas.
    • Installation conditions
    • The rescue is effective within the radius of 10 or 15 meters, with at least three directions of work position, and with visible sign. And without obstacles in the surroundings for quick use.
    • Installed near the hazardous areas.
    • Within a radius of 1.5 meters of the composition eyewash, there should be no electric switches to avoid electrical short circuit.
    • The water supply of the eyewash should be clean tap water or water filtered with appropriate filter medium.
    • Please follow the product specification for the pipe diameter and connection, to ensure the equipment work correctly.



    • Installation requirements
    • Please refer to the installation diagram, wind the pipe joint with sealing tape (PTFE Teflon tape).
    • When installing the eyewash with a pedal, the height of pedal front from the ground cannot be more than 90 mm.



    • Instructions
    • Please push the valve gently to rinse the eyes, the clean water will spray from the nozzle automatically, and reset the push valve and the dust cover after use.
    • Please pull down the valve rod to shower other parts of body, the water will spray from the shower head automatically, and reset the rod after use.
    • The product is used in emergency situations, to temporarily alleviate the damage of the harmful substances on human body; for further treatment, please follow doctor’s instructions.



    • Maintenance
    • The users must be knowledge trained and trial operation trained sufficiently before use.
    • The equipment should be checked regularly (once a week is recommended), and please investigate the cause and treat in time if problem is found.


    Emergency shower and eyewash installation steps
    Step 1: The base is installed in the ground using expansion bolts after setting the direction;
    Step 2:connect and lock the drainage tee and the base as shown;
    Step 3: Connect and lock the steel pipe with 5/4 drainage tee ,water inlet tee, eye wash assembly and 90 degrees bend
    Step 4: Put eye wash basin on the eyewash assembly,and connect it with eye wash basin pressure cap .
    Step 5: assembled the bull horn elbow;Put the dust cover on the filter net;
    Step 6: assembled push board and eyewash assembly
    Step 7: connect one inch short connection and 90 degrees bend and one inch spray control valve;
    Step 8: connect spray water inlet pipe and spray control valve and one inch elbow
    Step 9: connect shower reducer with one inch elbow;
    Step 10:connect the one inch spray control valve with the indicator and shower rod
