    Product Details:

    Place of Origin: China
    Brand Name: Techsafe
    Certification: ISO,CE
    Model Number: SH712BSR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: 1
    Packaging Details: CTN
    Delivery Time: 7 days
    Payment Terms: T/T,Western union
    Supply Ability: 200pcs/week
    Contact Now
    Detailed Product Description
    Material: Stainless Steel,SS304(carbon Steel Or Ss316L Is Optional),304 Or 316 Stainless Steel Product Name: Safety Shower And Eye Wash,Laboratory Safety PPE Emergency Shower Eye Wash,Stainless Steel Emergency Shower & Eye Wash,mergency Shower Double Eye Wash
    Original Water: Clean Or Leached Water Application: Laboratory,lab Equipment,School,oil,Tap Higher Education
    Name: Eye Wash,safety Shower And Eye Wash New Product,Manufacturer China Vertical Safety Shower And Eye Wash Station,Safety Emergency Body Shower Eye Wash Station,Emergency Eye Washer Shower Color: Green/ Yellow/ Silver
    Function: Wash Eye +shower,Safety Shower And Eyewash Station,15 Minutes Continual Flow Hydraulic Pressure: 0.2MPA-0.6MPA,0.2~0.6MPA
    Usage: Clean And Protect Eyes,Eyewash & Shower Option For Almost Every Industrial Situation,Cleanroom Protection Weight: 15kgs
    Standard: ANSI Z358.1-2009,ANSIZ 358.1-1998 Flow Control: Eyewash Flow≥11.4L/Min,shower Flow≥75.5L/Min,80-100L/ Min
    Feature: Strong Corrosion Resistance&easy Operation,Valve Can Be Fully Opened Within 1 Second By Hand Maximum Water Pressure: 7 Bar
    Working Temperature: 0℃-55℃ Surface Treatment: Polish Or High Gloss Epoxy Powder Coat
    Sprayheads With Protective Covers: Yes

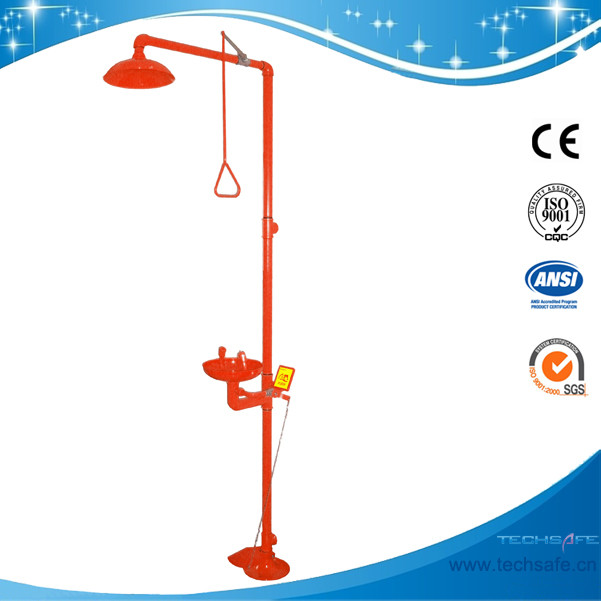

    SH712BSR-Safety shower & eyewash station,SS304 Emergency shower

    Item no.:
    SH712BSR
    Product name:Safety shower & eyewash station,SS304
    Material:304 stainless steel
    Sprayer head:,has dust shield cap,can be removed when eye wash operated
    Bowl:ø300mm
    Shower head:ø250mm
    Valve:eye wash-1/2" & shower-1" ball valve;activated in 1 second
    Pressure:0.2-0.6Mpa
    SH712BSR-Safety shower & eyewash station,SS304 emergency shower and eye washSH712BSR-Safety shower & eyewash station,SS304 emergency shower and eye washSH712BSR-Safety shower & eyewash station,SS304 emergency shower and eye washSH712BSR-Safety shower & eyewash station,SS304 emergency shower and eye washSH712BSR-Safety shower & eyewash station,SS304 emergency shower and eye washSH712BSR-Safety shower & eyewash station,SS304 emergency shower and eye wash

    More details,pls visit  www.labppe.com



    Emergency shower,Eyewash,eye wash,Eye wash stations,eye washing,safety showers,eye wash solution,bradley eye wash,Emergency eye wash station,Emergency safety shower,Eye safety,eye washer,

    Personal Protective Equipment:Emergency shower & Safety eye wash,Drench shower,Safety shower,Face wash bath,Eyewash station,Emergency shower.OSHA,ANSI  Z358.1-2004,CE certificate.ISO9001:2008.



    *Usage

    This unit is not only the essential equipment of labor protection, but also the essential facilities against poisonous and corrosive material. If accidents happen, reduce the damage to the minimum degree by quickly spraying or washing the hurt.



    *Main function parameters

    Pressure Flux L/Min Temperature

    Nominal

    pressure

    Seal

    pressure

    Working

    pressure

    Body shower Eye wash Tepid water
    0.4 0.45 0.20-0.80 ≥75.5 ≥11.4

    Choosing these data is considering the hurt to the skin, eye(s), when accidents happen.

    *Structure





    1. Polishing.

    2.SS ball valve and screw seal controled shower and eye wash separately.

    3.Set the seepage hole in the pipe of eye wash that can drain off the residual water,which clean pipe to prevent rust.



    *Main material: SUS304 stainless steel

    *Installation and maintenance

    1. You should check the type of products, certificate of approval, instruction and the packing list for another time.

    2. The location of the emergency equipment should be installed within 10 seconds walking time or 15 meters from the hazard.

    3. Installation and maintenance:

    A.connect the T-piece stainless steel pipe of outlet,inlet,body shoer pipe ,then connect with the bracket.

    B.fix the shower handle and shower head on the stainless steel pipe.

    C.connect the eye wash bowl with body stainless steel pipe.

    D.intal the eye wash shower into the pipe through eye wash bowl.

    E.instal the push board and foot treadle.

    F. choose the raght place to connect the pipe of water inlet and fix the bracket tightly.

    G.The adjust valve is in the middle of the two sprayers which can adjust the flux. It may need to adjust because of the different pressure and flux; though we adjust it before delivering you. The method of adjust: unscrew the helmet, adjust the adjustive pole with screwdriver, and turn it clockwise, the flux will be small, and turn it widdershins, the flux will be bigger.



    Method of application

    1.Pull the shower handle down ,the body shower will work.

    2.Please push the board clockwise, when you need eye washing, and the facility will work, pullback the push board withershins, eye wash valve close.



    *Maintenance

    1. Should using the facility above zero environments, and you should notice the pipeline antifreeze if used in the cold place.

    2. please clean the inet pipeline before installation.

    3. suggest to install the main valve in the inlet pipe, close the main valve first after using, and close the shower/eye wash valve when clear up the remain water.



    *The fault and solutions

    No. Conk out Cause Solution
    1

    The eye wash shower

    outlet flux is small

    A the adjustment rob is overdo

    B the adjustment valve is blocked

    A turn the rob anti-clockwise

    B wash the valve

    2 The eye wash shower outlet flux is large The adjustment rob is under-do Turn the rob clockwise
    3 The seep in the bowl is more The outlet is blocked Remove the foreign object
