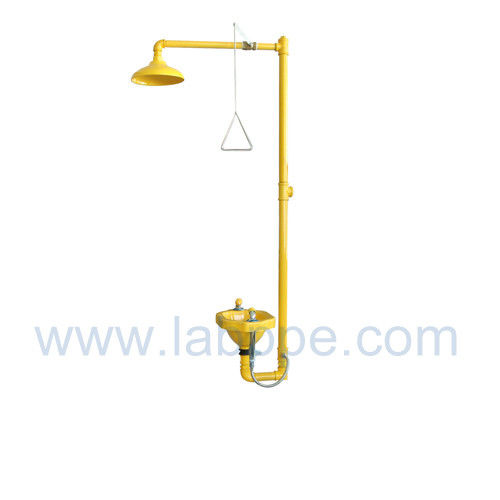

SHH100Y-Safety shower & eyewash station,Galvanized Iron,Color:Yellow,red,green

SHH100Y-Safety shower & eyewash station,Galvanized Iron,Color:Yellow,red,green

SHH100Y-Safety shower & eyewash station,Galvanized Iron,Color:Yellow,red,green

Product Details:

Place of Origin: China
Brand Name: Techsafe
Certification: ISO,CE
Model Number: SHH100Y

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 1
Packaging Details: CTN
Delivery Time: 7 days
Payment Terms: T/T,Western union
Supply Ability: 200pcs/week
Contact Now
Detailed Product Description
Material: Stainless Steel Product Name: Eye Wash Station
Type: Safety Shower And Eye Wash Usage: To Reduce The Level Of Injury
Standard: ANSI Z358.1-2009 Feature: Valve Can Be Fully Opened Within 1 Second By Hand

SHH100Y-Safety shower & eyewash station,Galvanized Iron

 Item no.:
SHH100Y
Product name:Safety shower & eyewash station,G.I.
Material:304 stainless steel
Coating: High gloss epoxy powder
Color:Yellow,red,green
  Emergency shower: G.I. inlet pipe, s/s stay-open ball valve-1"IPS, with actuating arm, pull rod & shower head
Eye wash: 304 stainless steel inlet pipe, s/s stay-open ball valve with flag handle & eye wash bowl
Spray head: Solid brass, built-in stainless steel filter to remove impurities from water
Foot treadle:G.I. available: Activating eye wash valve(Non-standard Supply)
Water supply and outlet:1 1/4"IPS
Water working presure:0.2-0.8Mpa.



More details,pls visit  www.labppe.com



Emergency shower,Eyewash,eye wash,Eye wash stations,eye washing,safety showers,eye wash solution,bradley eye wash,Emergency eye wash station,Emergency safety shower,Eye safety,eye washer,

Personal Protective Equipment:Emergency shower & Safety eye wash,Drench shower,Safety shower,Face wash bath,Eyewash station,Emergency shower.OSHA,ANSI  Z358.1-2004,CE certificate.ISO9001:2008.



Combination Unit Stainless Steel Combination Unit Emergency Shower and Eye/Face Wash
Pipe Standard: 1-1/4 inch stainless steel pipe (304SS) and fittings, with stainless steel rod providing additional support overhead; 5 inch diameter floor flange
Shower Head: shall be between 82" (208.3 cm) and 96" (248.3 cm) above floor.
Valve and Actuator Stay open Type 316 stainless steel ball valve actuated by rigid stainless steel pull rod.
Hands-free” stay-open valve Hands-free” stay-open valve activates in one second or less. The eye wash should also include be foot Controls.
Means of activating the emergency fixtures by stepping on a foot pedal which activates the stay-open valves of the eye, eye/face wash and or shower. These can be used in conjunction with standard
Category of specification
Requirement
  emergency fixture activation methods.
At 60" (152.4 cm) above floor At 60" (152.4 cm) above floor, the water pattern must be at least 20" (50.8 cm) in diameter.

actuator Easily located, accessible actuator no higher than 69" (173.3 cm) above floor
Eye/Face Wash: Eye/Face Wash:
Eyewash Outlet heads shall be positioned between 33" (83.8 cm) and 45" (114.3 cm) from the floor.
Protect outlet head Protect outlet heads from airborne contaminants.
Valve actuator shall be easy to locate and readily accessible to user.
Hands-free” stay-open valve shall activate in one second or less.
Category of specification
Requirement
Unit must deliver (litre must deliver) at least 3.0 GPM (11.4 litres) (for eye/face wash) or 0.4 GPM (1.5 litres) (for eye wash) for 15 minutes.
5.2 Size, Testing Area and Weight (ergonomet ric)
5.3 Spare part All require components shall be supplied with the set
6 Authenticat ed Testimonial/ Credential/ Certificate/ and Document 6.1 All documentations shall be in English and submitted in hard and soft copy.
  6.2 The bidder shall submit the documents includes, but not limited, maintenance and user manual,
brochure of the machine, application notes and certificates
7 7.1 Instrument shall be packed using over load and over travel protection built In
Packaging
  7.2 Appropriate shock watch label should be emplaced in the packageSHH100Y-Safety shower & eyewash station,Galvanized Iron,Color:Yellow,red,green
