    Product Details:

    Place of Origin: China
    Brand Name: Techsafe
    Certification: ISO,CE
    Model Number: SHP84

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: 1
    Packaging Details: CTN
    Delivery Time: 7 days
    Payment Terms: T/T,Western union
    Supply Ability: 100pcs/week
    Contact Now
    Detailed Product Description
    Material: Metal + Plastic,Steel And PVC,PVC,Plastic Application: Grinding,cutting,welding,moxibustion Etc,medical Health
    Warranty: 1 Year,12 Months Product Name: Laser Fume Extractor,Assured Soldering Fume Extractor,single Arm Fume Extraction System,Filtering Syetem,extraction Arm
    Color: White,Customed Type: Laboratory Furniture,Electristatic Fume Extraction Arms,2-3m,Soldering Smoke Absorber,Teloscopic Extraction Arm For Welding/cutting Fume Filtration
    Function: Suction,Fume Arrestor,Industrial Waste Gas Purification,fume Exhaust For Car Repair Plant Usage: Smoke Absorber,Extract Welding/cutting/processing Fume/dust,High Cleanliness



    SHP84-Lab Fume Extractor/Exhaust,PP/PVC,Wall mounted


    SHP84-Lab Fume Extractor/Exhaust,PP/PVC,Wall mounted

    Item  no.:SHP84

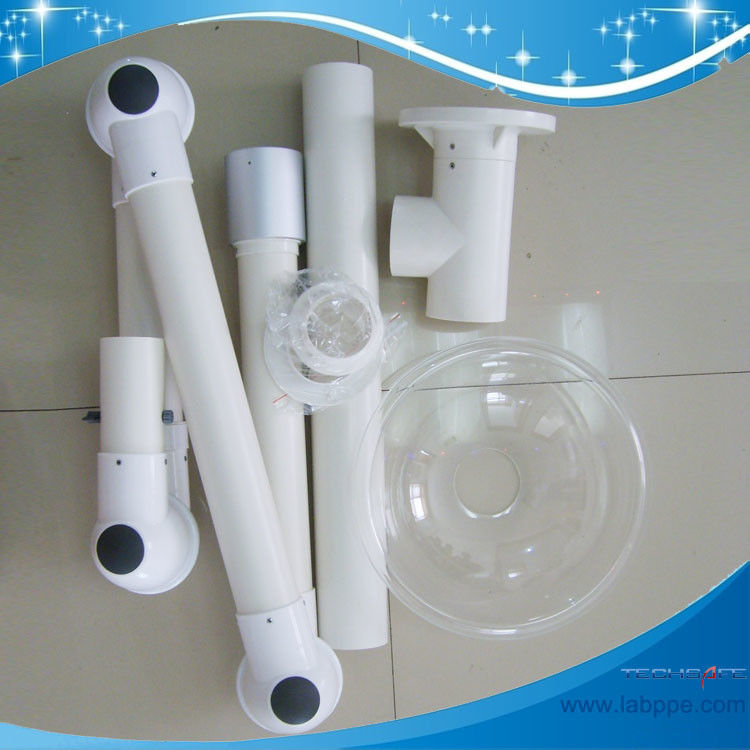

    Product name:Lab Fume Extractor/Exhaust,PP/PVC,Wall mounted
    Material:PP(Polypropylene),PVC(Polyvinyl chloride)
    1. Joint: high grade PP/PC, to be 360 swiveled
    2. Joint hermetic ring: low-aging treated rubber.
    3. Support spring/joint bolt: High grade PP with a moded – in S/S bearing locking center bolt
    4. Adjustable joint knob: high grade PP/PC with a built-in brass nut locking with center bolt,red, white available
    5. Damper: to manually adjust airflow by a knob
    6. Dome/cup hood: D375mm/200mm, high grade PP/PC, red, white,semi-transparent & transparent available
    7. Extension tube: D75mm PVC/PC
    8. Bracket: high grade PP/PC (ceiling/wall mounted), PP/PC (bench mounted)
    9.Guiding ting: Low – friction treated rubber



    SHP84-welding fume extractextraction hood flexible fume extraction arm PP Lab Fume Extractor/Exhaust,PP/PVC,Wall mounted

    SHP84-welding fume extractextraction hood flexible fume extraction arm PP Lab Fume Extractor/Exhaust,PP/PVC,Wall mountedSHP84-welding fume extractextraction hood flexible fume extraction arm PP Lab Fume Extractor/Exhaust,PP/PVC,Wall mountedSHP84-welding fume extractextraction hood flexible fume extraction arm PP Lab Fume Extractor/Exhaust,PP/PVC,Wall mountedSHP84-welding fume extractextraction hood flexible fume extraction arm PP Lab Fume Extractor/Exhaust,PP/PVC,Wall mounted



    Fume extraction,fume extractors,fume exhaust,fume exhausters,extraction fan,extraction hood,exhaust cowl,fume suction,gaseous waste exhaust,gas exhaust,waste gas cowl

    Lab Fume Hoods valves,Lab water gas Faucets,Lab air taps,Lab fume exhaust,Fume extractor,Lab PP sink,Lab drying rack,Lab drainage pegboard,Pegboards & drip trays,Epoxy Pegboard Glassware Drying Rack,

    Product name:Fume exhaust (ceiling/wall/bench mounted)
    Material:PP(Polypropylene),PVC(Polyvinyl chloride)
    1. Joint: high grade PP/PC, to be 360 swiveled
    2. Joint hermetic ring: low-aging treated rubber.
    3. Support spring/joint bolt: High grade PP with a moded – in S/S bearing locking center bolt
    4. Adjustable joint knob: high grade PP/PC with a built-in brass nut locking with center bolt
    5. Damper: to manually adjust airflow by a knob
    6. Dome/cup hood: D375mm/200mm, high grade PP/PC, red, grey & transparent available
    7. Extension tube: D75mm PVC/PC
    8. Bracket: high grade PP/PC (ceiling/wall mounted), PP/PC (bench mounted)
    9.Guiding ting: Low – friction treated rubber





    • Capability:
    • Made of PVC material, high grade PP, SUS304 stainless steel, corrosion-proof, acid-proof, and alkali-proof;
    • Movement scope is big, to be 360ºswiveled as center of bracket, 1240mm as radius; can be flexed freely inward the height scope of 720mm;
    • The distance between of ornamental bracket and bracket is adjustable; the adjustable scope is 990mm-1450mm.
    • The air adjustable knob can control the air flux;
    • It is convenient to use, easy to take down, recombine and clean.



    • Installation and using
    • Choose the installation position according to the work location and indoor environment, at the ceiling bore according to bracket, use M8 screw fasting the bracket to ceiling;
    • Put the flex tube into the pore of the drain wind tube, let tube sheath to lockup the flex tube and drain wind tube, to screw on the underpan;
    • Screw on the collect air cover;
    • Connect drain wind stomata to drain wind system;
    • When to use, can push and pull collect air cover, made it aim at pump down position, and adjust air flex adjustable knob. After using screw on adjustable knob, shut off baffle, fold collect air cover and reset.



    • Notice in application
    • Having the press axletree and the rubber loop, if the joint become flexible, can screw on joint knob;
    • Don’t overexertion when push and pull the collect air cover;
    • The angle of flex tube and bracket don’t exceed 90º, or else rebound;
    • Installation height: the distance of ceiling and collect air cover, Max.1660mm,
    • Capability:
    • Made of PVC material, high grade PP, SUS304 stainless steel, corrosion-proof, acid-proof, and alkali-proof;
    • Movement scope is big, to be 360ºswiveled as center of bracket, 1240mm as radius; can be flexed freely inward the height scope of 720mm;
    • The distance between of ornamental bracket and bracket is adjustable; the adjustable scope is 990mm-1450mm.
    • The air adjustable knob can control the air flux;
    • It is convenient to use, easy to take down, recombine and clean.



    • Installation and using
    • Choose the installation position according to the work location and indoor environment, at the ceiling bore according to bracket, use M8 screw fasting the bracket to ceiling;
    • Put the flex tube into the pore of the drain wind tube, let tube sheath to lockup the flex tube and drain wind tube, to screw on the underpan;
    • Screw on the collect air cover;
    • Connect drain wind stomata to drain wind system;
    • When to use, can push and pull collect air cover, made it aim at pump down position, and adjust air flex adjustable knob. After using screw on adjustable knob, shut off baffle, fold collect air cover and reset.



    • Notice in application
    • Having the press axletree and the rubber loop, if the joint become flexible, can screw on joint knob;
    • Don’t overexertion when push and pull the collect air cover;
    • The angle of flex tube and bracket don’t exceed 90º, or else rebound;
    • Installation height: the distance of ceiling and collect air cover, Max.1660mm,
