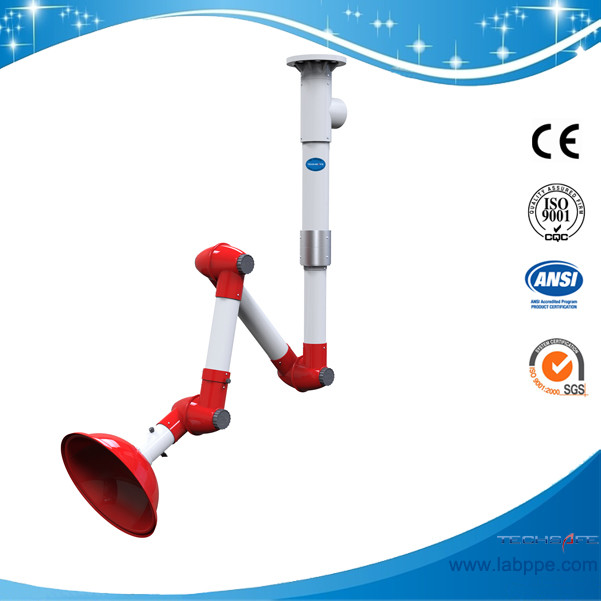

SHP8-Lab Fume Extractor/Exhaust,dental Ceiling mounted,wall mounted flexible fume extraction arm

SHP8-Lab Fume Extractor/Exhaust,dental Ceiling mounted,wall mounted flexible fume extraction arm

    • SHP8-Lab Fume Extractor/Exhaust,dental Ceiling mounted,wall mounted flexible fume extraction arm
    • SHP8-Lab Fume Extractor/Exhaust,dental Ceiling mounted,wall mounted flexible fume extraction arm
    • SHP8-Lab Fume Extractor/Exhaust,dental Ceiling mounted,wall mounted flexible fume extraction arm
    • SHP8-Lab Fume Extractor/Exhaust,dental Ceiling mounted,wall mounted flexible fume extraction arm
    • SHP8-Lab Fume Extractor/Exhaust,dental Ceiling mounted,wall mounted flexible fume extraction arm
  • SHP8-Lab Fume Extractor/Exhaust,dental Ceiling mounted,wall mounted flexible fume extraction arm

    Product Details:

    Place of Origin: China
    Brand Name: Techsafe
    Certification: ISO,CE
    Model Number: SHP8

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: 1
    Packaging Details: CTN
    Delivery Time: 7 days
    Payment Terms: T/T,Western union
    Supply Ability: 100pcs/week
    Contact Now
    Detailed Product Description
    Material: Metal + Plastic Application: Grinding,cutting,welding,moxibustion Etc,medical Health
    Warranty: 1 Year,12 Months Product Name: Laser Fume Extractor,Assured Soldering Fume Extractor,single Arm Fume Extraction System,Filtering Syetem,extraction Arm
    Type: Electristatic Fume Extraction Arms,Soldering Smoke Absorber,Teloscopic Extraction Arm For Welding/cutting Fume Filtration Function: Suction,fume Exhaust For Car Repair Plant
    Usage: Extract Welding/cutting/processing Fume/dust

    More fume exhaust arms details,pls visit  www.labppe.com,

    SHP8-Lab Fume Extractor/Exhaust,PP/PVC


    SHP8-Lab Fume Extractor/Exhaust,PP/PVC,Ceiling mounted,wall mounted

    Item  no.:SHP8
    Product name:Fume exhaust (ceiling/wall/bench mounted)
    Material:PP(Polypropylene),PVC(Polyvinyl chloride)
    1. Joint: high grade PP/PC, to be 360 swiveled
    2. Joint hermetic ring: low-aging treated rubber.
    3. Support spring/joint bolt: High grade PP with a moded – in S/S bearing locking center bolt
    4. Adjustable joint knob: high grade PP/PC with a built-in brass nut locking with center bolt
    5. Damper: to manually adjust airflow by a knob
    6. Dome/cup hood: D375mm/200mm, high grade PP/PC, red, grey & transparent available
    7. Extension tube: D75mm PVC/PC
    8. Bracket: high grade PP/PC (ceiling/wall mounted), PP/PC (bench mounted)
    9.Guiding ting: Low – friction treated rubber



    SHP8-Lab Fume Extractor/Exhaust,dental Ceiling mounted,wall mounted flexible fume extraction arm

    SHP8-Lab Fume Extractor/Exhaust,dental Ceiling mounted,wall mounted flexible fume extraction armSHP8-Lab Fume Extractor/Exhaust,dental Ceiling mounted,wall mounted flexible fume extraction armSHP8-Lab Fume Extractor/Exhaust,dental Ceiling mounted,wall mounted flexible fume extraction armSHP8-Lab Fume Extractor/Exhaust,dental Ceiling mounted,wall mounted flexible fume extraction armSHP8-Lab Fume Extractor/Exhaust,dental Ceiling mounted,wall mounted flexible fume extraction arm

    fume exhaust,fume exhausters,extraction fan,

    SHP8 FUME EXHAUST:Φ75

    Jiont:High grade PP.to be 360°swiveled,easy to dismantle, assemble &clean
    Sealing ring: Low-friction treated rubber
    Center bolt:304stainless steel
    Adjustable joint knob: Totally brass with a s/s bearing inside locked with center bolt
    Damper:To adjust air flow with a knob manually
    Dome/cup hood: High grade PP/PC
    Tube:75mm /PP
    Swing device: with 360°swing device,take fixed rack as centre, max enabing
    movement radius to 1600mm
    Installation Bracket: Injection of plastics from a complete Mold,mounting panel
    strongly connected to the joint

    ILLUSTRATIONS OF FUME EXTRACTOR



    • Capability:
    • Made of PVC material, high grade PP, SUS304 stainless steel, corrosion-proof, acid-proof, and alkali-proof;
    • Movement scope is big, to be 360ºswiveled as center of bracket, 1240mm as radius; can be flexed freely inward the height scope of 720mm;
    • The distance between of ornamental bracket and bracket is adjustable; the adjustable scope is 990mm-1450mm.
    • The air adjustable knob can control the air flux;
    • It is convenient to use, easy to take down, recombine and clean.



    • Installation and using
    • Choose the installation position according to the work location and indoor environment, at the ceiling bore according to bracket, use M8 screw fasting the bracket to ceiling;
    • Put the flex tube into the pore of the drain wind tube, let tube sheath to lockup the flex tube and drain wind tube, to screw on the underpan;
    • Screw on the collect air cover;
    • Connect drain wind stomata to drain wind system;
    • When to use, can push and pull collect air cover, made it aim at pump down position, and adjust air flex adjustable knob. After using screw on adjustable knob, shut off baffle, fold collect air cover and reset.



    • Notice in application
    • Having the press axletree and the rubber loop, if the joint become flexible, can screw on joint knob;
    • Don’t overexertion when push and pull the collect air cover;
    • The angle of flex tube and bracket don’t exceed 90º, or else rebound;
    • Installation height: the distance of ceiling and collect air cover, Max.1660mm,
    • Sketch map of installation
