Place of Origin: | China |
Brand Name: | Techsafe |
Certification: | ISO,CE |
Model Number: | SH755B1 |
Minimum Order Quantity: | 1 |
---|---|
Price: | 1 |
Packaging Details: | CTN |
Delivery Time: | 7 days |
Payment Terms: | T/T,Western union |
Supply Ability: | 500pcs/week |
Material: | Thick Copper | Product Name: | Deck Mount Double Head Eyewash Drench Hose Unit For Lab |
---|---|---|---|
Type: | Laboratory Furniture | Switch: | Handle |
General Use: | Commercial Furniture | Color: | Green |
Hose: | Length 1.4m,PVC Pipe With SS Wire Braided | Application: | Laboratory,Chemistry Lab/Physics Lab/Biology Lab/School/Research Institute,Hospitals |
Function: | Wash Eyes | Max Working Pressure: | 6 Bar,7 Bar |
Max. Working Pressure: | 7Bar | Name: | Emergency Deck Mount Dual Head Eye Face Wash Drench Hose |
More details,pls visit www.labppe.com

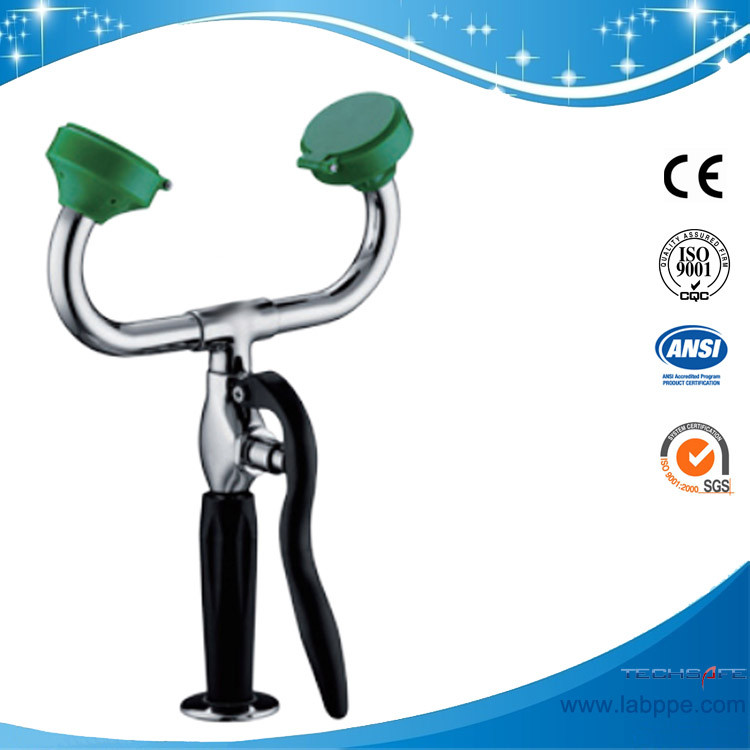

SH755B1-Portable/bench eye wash,brass
Item no.:SH755B1
Product name:Portable/bench eye wash,brass
Fixing:fixing in table or wall
Material:brass
Sprayer head:has dust shield cap,can be removed when eye wash operated
Function:on the basis of the water pressure, the valve for flow control can be adjusted in order to adapt for the eyes
Switch:automatic trigger locking for easy hand-free use
Pipe length:1.4m, PVC with stainless steel net
Pressure:Max. 7Bar
Emergency shower,Eyewash,eye wash,Eye wash stations,eye washing,safety showers,eye wash solution,bradley eye wash,Emergency eye wash station,Emergency safety shower,Eye safety,eye washer,
Personal Protective Equipment:Emergency shower & Safety eye wash,Drench shower,Safety shower,Face wash bath,Eyewash station,Emergency shower.OSHA,ANSI Z358.1-2004,CE certificate.ISO9001:2008.
Head |
Installed so the fluid flow pattern is no less than 33 inches but no greater than 53 inches from the work surface |
Positioned 6 inches from wall or nearest obstruction |
Deliver 0.4 GPM tepid flushing fluid for 15 minutes at 30 psi for plumbed units |
Deliver 0.4 GPM tepid flushing fluid for 15 minutes for gravity-fed units |
Head & Flushing fluid units must be protected from airborne contaminants & the removal of any protective device(s) must not require a separate motion by the user |
Valves |
Activate in one second or less |
Stay open valve |
Valve remains on until the user shuts it off |
Emergency Shower Heads |
Positioned 82 to 96 inches in height from the work surface |
Spray pattern will have a minimum diameter of 20 inches at 60 inches above the work surface |
Must deliver tepid flushing fluid |
Flow rate equal to 20 gallons per minute (GPM) for a minimum of 15 minutes at 30 pounds per square inch (PSI) (Plumbed Units Only) |
Flow rate equal to 20 GPM for a minimum of 15 minutes (self contained units only) |
The center of the spray pattern must be located at least 16 inches from any obstruction |
Valves |
Activate in one second or less |
Stay open valve |
Valve remains on until the user shuts it off |
Manufacture product catalogs with requested information should be supplied |
Manufacture authorization of the bidder to represent the given brand |
