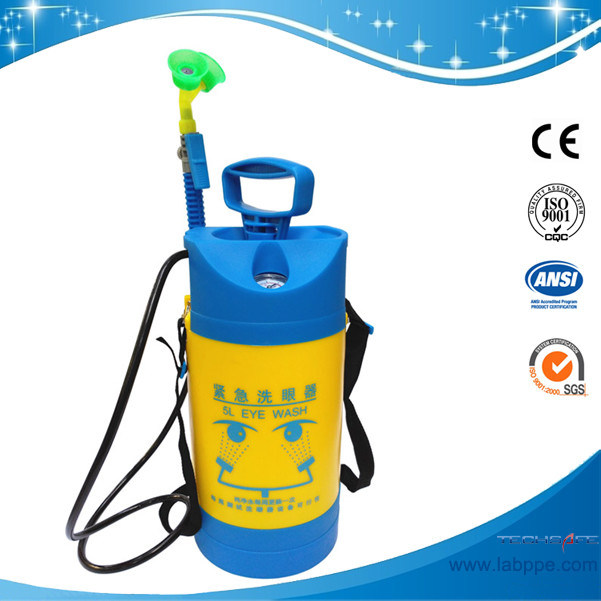

SH782-Portable Eye wash,5L
SH782-Portable Eye wash,5L
Item no.:SH782
Product name:Portable Eye wash,5L
Material:PE(polyethylene)
Function:5L capacity allows for 15 minute flow
Pressure:2.5Bar
Emergency shower,Eyewash,eye wash,Eye wash stations,eye washing,safety showers,eye wash solution,bradley eye wash,Emergency eye wash station,Emergency safety shower,Eye safety,eye washer,
Personal Protective Equipment:Emergency shower & Safety eye wash,Drench shower,Safety shower,Face wash bath,Eyewash station,Emergency shower.OSHA,ANSI Z358.1-2004,CE certificate.ISO9001:2008.
*Usage:
Portable press-wash skin & eye wash is not only the essential equipment of labor protection,but also the essential protective facilities against poisonous and corrosive material.It can be used in the field of the chemical industry,semi-conductor,metallurgy,electron and machine,also can be used in outdoor.
*Feature:
Portable press-wash skin & eye wash takes up little room,which is the most visible character.The feature of it:
It can supply the most professional protection,convenient & shortcut.
It has no special requirments of installation.it can be used according to circumstances.
It can be used in washing face or eyes,hands assistant is available if necessary.
it’s made of innocuous polyethylene,equipping with exhaust valve.
*Method of Usage:
Input water:turn the inflator pump counter-clockwisely,take it out and add pure water to the scale of 12L.Then tighten the lock nut.

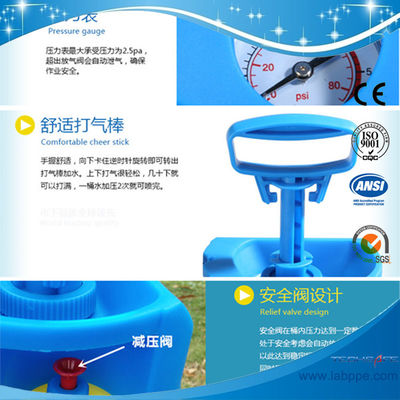

Airinflation: rotate the inflator pump handle and pull it out of the constant head tank, push and pull it to inflate to the Vent Valve exhausting automatically.Then pull the handle into the constant head tank.
Rinse:the eye wash is usable when clenching the eye wash handle, draw down the push button to fixing the water at a constant stream,after using,draw up the push button & loosen the handle.
*Attentions:
1.This article has no drain hole,pls arrange the water outlet beforehand.
2.If acid or alkaline solution harm eyes,pls repeatly rinse them by eyewash,then use the eye wash or do medical assistance.
3.Regular airinflation check is needed per 3 days or change the water per 5-7 days.
4.If used in work places or dangerous environments,it is better to add some professional eyewash concentrated liquor so as to protect the eyes or face from damage,and to keep the liquuor for a long time.
*Maintenance:(enclosed with spare parts for changing)
1.If air leakage happens in flator pump①turn the inflator pump clockwisely to make sure it fix fast.②turn the inflator pump counter-clockwisely,take it out to examine if the gasket of theinflator pump is of transformation,if be,pls change it.
2.Airinflation is unable: ①loosen the lock nut,take out the inflator pump core to examine if the gasket of theinflator pump is of transformation,if be,pls change it. ②turn the inflator pump counter-clockwisely,take it out to examine if the jiont between gasket & inflator pump is tight,if be,pls change it.
*Defining for eye wash
As the splash of chemical liquid taking place to staff member's body, face, eyes or the staff members’ clothes cause the fire, it is the effective safe protection articles to minimize the dangerous.
*Main performance parameter
| Pressure grade MPa |
Flux L/min |
Applicable condition |
| Nominal pressure |
Sealed pressure |
Working pressure |
≥11.4
|
Pure water of normal atmospheric temperature or according with the sanitary standard |
| 0.4 |
0.45 |
0.20~0.40 |
The choice of the main performance parameter according to USA ANSI Z358.1-2004, in order to lighten harmful substance to human skin, eyes injury of top layer and simulate when accidents make happened.
*Structure characteristic
1.Making use of the ball valve to control the eye wash. Easy to operate,open and close it fast , it is reliable to close.
2.The flux regulation and control valve can regulate by oneself. (Regulation method can refer to installing and debugging).
*Main material
