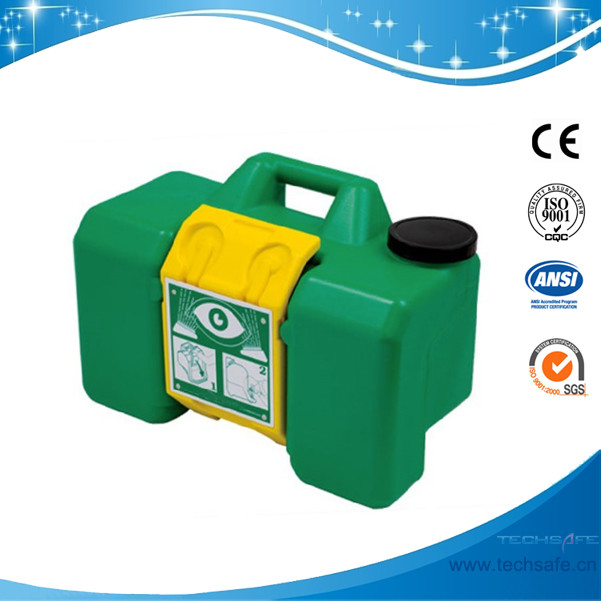

SH8G-Gravity operated Eye wash,8 Gallon
Item no.:SH8G
Product name:Gravity operated Eye wash,8 Gallon
Material:PE
Fixing:fixing in table or wall,No plumbing required
Function:8 Gallon capacity allows for 15 minute flow
Emergency shower,Eyewash,eye wash,Eye wash stations,eye washing,safety showers,eye wash solution,bradley eye wash,Emergency eye wash station,Emergency safety shower,Eye safety,eye washer,
Personal Protective Equipment:Emergency shower & Safety eye wash,Drench shower,Safety shower,Face wash bath,Eyewash station,Emergency shower.OSHA,ANSI Z358.1-2004,CE certificate.ISO9001:2008.
|
Head
|
|
Installed so the fluid flow pattern is no less than 33 inches but no greater than 53 inches from the work surface
|
|
Positioned 6 inches from wall or nearest obstruction
|
|
Deliver 0.4 GPM tepid flushing fluid for 15 minutes at 30 psi for plumbed units
|
|
Deliver 0.4 GPM tepid flushing fluid for 15 minutes for gravity-fed units
|
|
Head & Flushing fluid units must be protected from airborne contaminants & the removal of any protective device(s) must not require a separate motion by the user
|
|
Valves
|
|
Activate in one second or less
|
|
Stay open valve
|
|
Valve remains on until the user shuts it off
|
|
Emergency Shower
Heads
|
|
Positioned 82 to 96 inches in height from the work surface
|
|
Spray pattern will have a minimum diameter of 20 inches at 60 inches above the work surface
|
|
Must deliver tepid flushing fluid
|
|
Flow rate equal to 20 gallons per minute (GPM) for a minimum of 15 minutes at 30 pounds per square inch (PSI) (Plumbed Units Only)
|
|
Flow rate equal to 20 GPM for a minimum of 15 minutes (self contained units only)
|
|
The center of the spray pattern must be located at least 16 inches from any obstruction
|
|
Valves
|
|
Activate in one second or less
|
|
Stay open valve
|
|
Valve remains on until the user shuts it off
|
|
Manufacture product catalogs with requested information should be supplied
|
|
Manufacture authorization of the bidder to represent the given brand
|
|
Head
|
|
Installed so the fluid flow pattern is no less than 33 inches but no greater than 53 inches from the work surface
|
|
Positioned 6 inches from wall or nearest obstruction
|
|
Deliver 0.4 GPM tepid flushing fluid for 15 minutes at 30 psi for plumbed units
|
|
Deliver 0.4 GPM tepid flushing fluid for 15 minutes for gravity-fed units
|
|
Head & Flushing fluid units must be protected from airborne contaminants & the removal of any protective device(s) must not require a separate motion by the user
|
|
Valves
|
|
Activate in one second or less
|
|
Stay open valve
|
|
Valve remains on until the user shuts it off
|
|
Emergency Shower
Heads
|
|
Positioned 82 to 96 inches in height from the work surface
|
|
Spray pattern will have a minimum diameter of 20 inches at 60 inches above the work surface
|
|
Must deliver tepid flushing fluid
|
|
Flow rate equal to 20 gallons per minute (GPM) for a minimum of 15 minutes at 30 pounds per square inch (PSI) (Plumbed Units Only)
|
|
Flow rate equal to 20 GPM for a minimum of 15 minutes (self contained units only)
|
|
The center of the spray pattern must be located at least 16 inches from any obstruction
|
|
Valves
|
|
Activate in one second or less
|
|
Stay open valve
|
|
Valve remains on until the user shuts it off
|
|
Manufacture product catalogs with requested information should be supplied
|
|
Manufacture authorization of the bidder to represent the given brand
|
