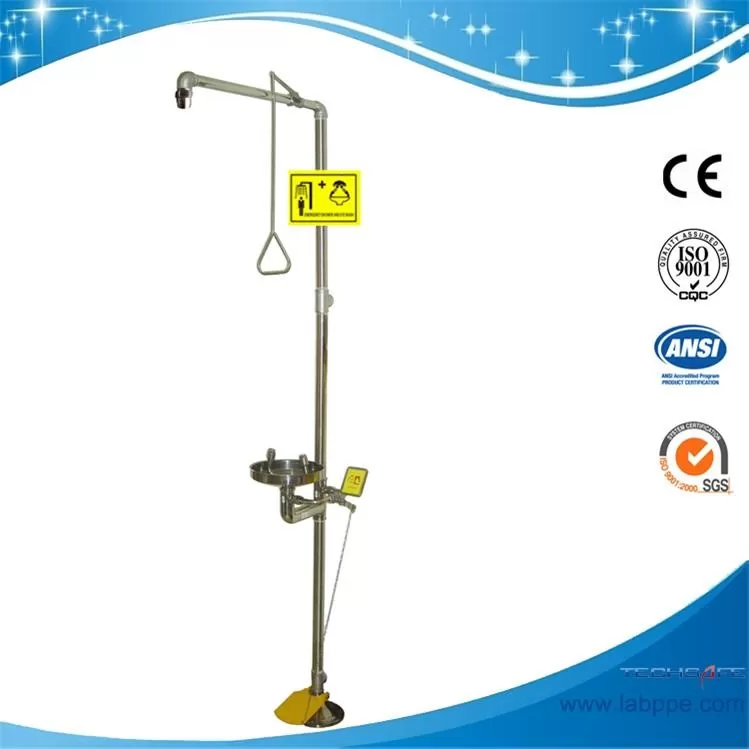

SH712BSF-SUS304 stainless steel Pedaled emergency shower & eyewash station combination foot operated rotary shower head

SH712BSF-SUS304 stainless steel Pedaled emergency shower & eyewash station combination foot operated rotary shower head

    • SH712BSF-SUS304 stainless steel Pedaled emergency shower & eyewash station combination foot operated rotary shower head
    • SH712BSF-SUS304 stainless steel Pedaled emergency shower & eyewash station combination foot operated rotary shower head
    • SH712BSF-SUS304 stainless steel Pedaled emergency shower & eyewash station combination foot operated rotary shower head
    • SH712BSF-SUS304 stainless steel Pedaled emergency shower & eyewash station combination foot operated rotary shower head
  • SH712BSF-SUS304 stainless steel Pedaled emergency shower & eyewash station combination foot operated rotary shower head

    Product Details:

    Place of Origin: China
    Brand Name: Techsafe
    Certification: ISO,CE
    Model Number: SH712BSXF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: 1
    Packaging Details: CTN
    Delivery Time: 7 days
    Payment Terms: T/T,Western union
    Supply Ability: 200pcs/week
    Contact Now
    Detailed Product Description
    COLOR: RED MATERIAL: SUS304
    SHOWER HEAD: Rotary Material: Stainless Steel,SS304(carbon Steel Or Ss316L Is Optional),304 Or 316 Stainless Steel
    Product Name: Safety Shower And Eye Wash,Laboratory Safety PPE Emergency Shower Eye Wash,Stainless Steel Emergency Shower & Eye Wash,mergency Shower Double Eye Wash Original Water: Drinking Water Or Filtered Water
    Application: Laboratory,lab Equipment,School,oil,Tap Higher Education Name: Eye Wash,safety Shower And Eye Wash New Product,Manufacturer China Vertical Safety Shower And Eye Wash Station,Safety Emergency Body Shower Eye Wash Station,Emergency Eye Washer Shower
    Color: Green/ Yellow/ Silver Function: Wash Eye +shower,Safety Shower And Eyewash Station,15 Minutes Continual Flow
    Hydraulic Pressure: 0.2MPA-0.6MPA,0.2~0.6MPA Usage: Clean And Protect Eyes,Eyewash & Shower Option For Almost Every Industrial Situation,Cleanroom Protection
    Weight: 15kgs Standard: ANSI Z358.1-2009,ANSIZ 358.1-1998
    Flow Control: Eyewash Flow≥11.4L/Min,shower Flow≥75.5L/Min,80-100L/ Min Feature: Strong Corrosion Resistance&easy Operation,Valve Can Be Fully Opened Within 1 Second By Hand
    Maximum Water Pressure: 7 Bar Working Temperature: 0℃-55℃
    Surface Treatment: Polish Or High Gloss Epoxy Powder Coat Sprayheads With Protective Covers: Yes

    SH712BSF-Pedaled shower & eyewash station,SS304,combination foot operated type

    Item no.:SH712BSF
    Product name:Pedaled shower & eyewash station,SS304
    Material:304 stainless steel
    Coating:High gloss epoxy powder,red/yellow is available
    Sprayer head:ø250mm,has dust shield cap,can be removed when eye wash operated
    Valve:eye wash-1/2" & shower-3/4" ball valve;activated in 1 second
    Pressure:0.2-0.8Mpa
    Foot treadle:SS304,is available
    Diameter of Eyewash Basin:260mm


    More details,pls visit  www.labppe.com

    SH712BSF-SUS304 stainless steel Pedaled emergency shower & eyewash station combination foot operated rotary shower headSH712BSF-SUS304 stainless steel Pedaled emergency shower & eyewash station combination foot operated rotary shower head

    Emergency shower,Eyewash,eye wash,OSHA,ANSI  Z358.1-2004,CE certificate.ISO9001:2008.

    1. Using environment

      1. Where splashes dangerous substances, such as chemicals, dangerous goods, hazardous liquid, solid, etc.

      2. The environment with pollution.

    2. Where burning may occur.

    3. Please take anti-freezing measures for the pipeline in cold areas.

    4. Installation conditions

    5. The rescue is effective within the radius of 10 or 15 meters, with at least three directions of work position, and with visible sign. And without obstacles in the surroundings for quick use.

    6. Installed near the hazardous areas.

    7. Within a radius of 1.5 meters of the composition eyewash, there should be no electric switches to avoid electrical short circuit.

    8. The water supply of the eyewash should be clean tap water or water filtered with appropriate filter medium.

    9. Please follow the product specification for the pipe diameter and connection, to ensure the equipment work correctly.

    10. SH712BSF-SUS304 stainless steel Pedaled emergency shower & eyewash station combination foot operated rotary shower head



    Pressure(Mpa) Flux L/Min Temperature

    Nominal

    pressure

    Seal

    pressure

    Working

    pressure

    Shower

    Eye

    wash

    Tepid water
    0.4 0.45 0.20-0.80 ≥75.5 ≥11





    Emergency shower &eye washs instruction

    *Usage

    This unit is not only the essential equipment of labor protection, but also the essential facilities against poisonous and corrosive material. If accidents happen, reduce the damage to the minimum degree by quickly spraying or washing the hurt.



    *Main function parameters

    Pressure Flux L/Min Temperature

    Nominal

    pressure

    Seal

    pressure

    Working

    pressure

    Body shower Eye wash Tepid water
    0.4 0.45 0.20-0.80 ≥75.5 ≥11.4

    Choosing these data is considering the hurt to the skin, eye(s), when accidents happen.

    *Structure

    1. Polishing.

    2.SS ball valve and screw seal controled shower and eye wash separately.

    3.Set the seepage hole in the pipe of eye wash that can drain off the residual water,which clean pipe to prevent rust.



    *Main material: SUS304 stainless steel

    *Installation and maintenance

    1. You should check the type of products, certificate of approval, instruction and the packing list for another time.

    2. The location of the emergency equipment should be installed within 10 seconds walking time or 15 meters from the hazard.

    3. Installation and maintenance:

    A.connect the T-piece stainless steel pipe of outlet,inlet,body shoer pipe ,then connect with the bracket.

    B.fix the shower handle and shower head on the stainless steel pipe.

    C.connect the eye wash bowl with body stainless steel pipe.

    D.intal the eye wash shower into the pipe through eye wash bowl.

    E.instal the push board and foot treadle.

    F. choose the raght place to connect the pipe of water inlet and fix the bracket tightly.

    G.The adjust valve is in the middle of the two sprayers which can adjust the flux. It may need to adjust because of the different pressure and flux; though we adjust it before delivering you. The method of adjust: unscrew the helmet, adjust the adjustive pole with screwdriver, and turn it clockwise, the flux will be small, and turn it widdershins, the flux will be bigger.



    *Method of application

    1.Pull the shower handle down ,the body shower will work.

    2.Please push the board clockwise, when you need eye washing, and the facility will work, pullback the push board withershins, eye wash valve close.



    *Maintenance

    1. Should using the facility above zero environments, and you should notice the pipeline antifreeze if used in the cold place.

    2. please clean the inet pipeline before installation.

    3. suggest to install the main valve in the inlet pipe, close the main valve first after using, and close the shower/eye wash valve when clear up the remain water.



    *The fault and solutions

    No. Conk out Cause Solution
    1

    The eye wash shower

    outlet flux is small

    A the adjustment rob is overdo

    B the adjustment valve is blocked

    A turn the rob anti-clockwise

    B wash the valve

    2 The eye wash shower outlet flux is large The adjustment rob is under-do Turn the rob clockwise
    3 The seep in the bowl is more The outlet is blocked Remove the foreign object

    SH712BSF-SUS304 stainless steel Pedaled emergency shower & eyewash station combination foot operated rotary shower head
