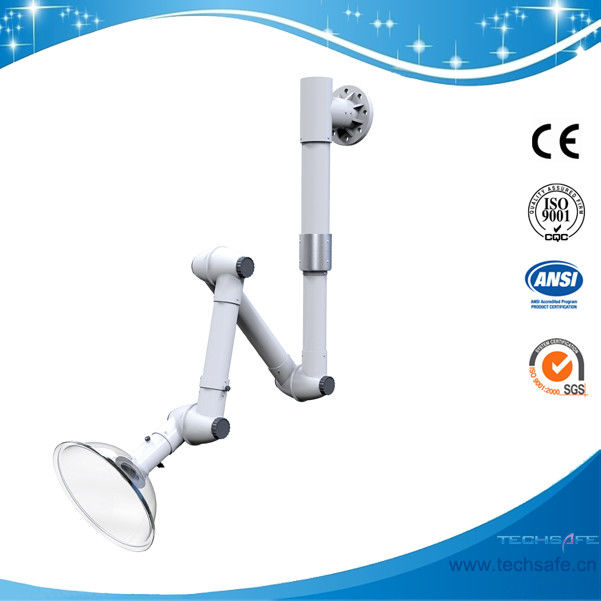

SHP84-flexible fume extraction arm Lab Fume Extractor/Exhaust,flexible extraction arm,fume exhaust arm,extraction hood

SHP84-flexible fume extraction arm Lab Fume Extractor/Exhaust,flexible extraction arm,fume exhaust arm,extraction hood

    • SHP84-flexible fume extraction arm Lab Fume Extractor/Exhaust,flexible extraction arm,fume exhaust arm,extraction hood
    • SHP84-flexible fume extraction arm Lab Fume Extractor/Exhaust,flexible extraction arm,fume exhaust arm,extraction hood
  • SHP84-flexible fume extraction arm Lab Fume Extractor/Exhaust,flexible extraction arm,fume exhaust arm,extraction hood

    Product Details:

    Place of Origin: China
    Brand Name: Techsafe
    Certification: ISO,CE
    Model Number: SHP84

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: 1
    Packaging Details: CTN
    Delivery Time: 7 days
    Payment Terms: T/T,Western union
    Supply Ability: 100pcs/week
    Contact Now
    Detailed Product Description
    After-sales Service Provided: Online Support Material: Steel And PVC
    Application: Grinding,cutting,welding,moxibustion Etc,medical Health Warranty: 1 Year,12 Months
    Color: White Type: Laboratory Furniture,Electristatic Fume Extraction Arms,2-3m,Soldering Smoke Absorber,Teloscopic Extraction Arm For Welding/cutting Fume Filtration
    Feature: For Cleaning,Automatic Blowing,Easy To Move And Install,High Temperature Resistance,Eco-friendly Filter Area: 12-40㎡
    Function: Suction,Fume Arrestor,Industrial Waste Gas Purification,fume Exhaust For Car Repair Plant Usage: Smoke Absorber,Extract Welding/cutting/processing Fume/dust,High Cleanliness
    Air Flow: 3600m3/h

    SHP84-Lab Fume Extractor/Exhaust,PP/PVC,blower/fan available


    SHP84-Lab Fume Extractor/Exhaust,PP/PVC,Ceiling mounted,wall mounted

    Item  no.:SHP84
    Product name:Fume exhaust (ceiling/wall/bench mounted)
    Material:PP(Polypropylene),PVC(Polyvinyl chloride)
    1. Joint: high grade PP/PC, to be 360 swiveled
    2. Joint hermetic ring: low-aging treated rubber.
    3. Support spring/joint bolt: High grade PP with a moded – in S/S bearing locking center bolt
    4. Adjustable joint knob: high grade PP/PC with a built-in brass nut locking with center bolt,red, white available
    5. Damper: to manually adjust airflow by a knob
    6. Dome/cup hood: D375mm/200mm, high grade PP/PC, red, white,semi-transparent & transparent available
    7. Extension tube: D75mm PVC/PC
    8. Bracket: high grade PP/PC (ceiling/wall mounted), PP/PC (bench mounted)
    9.Guiding ting: Low – friction treated rubber



    More details,pls visit  www.labppe.com



    Fume extraction,fume extractors,fume exhaust,fume exhausters,extraction fan,extraction hood,exhaust cowl,fume suction,gaseous waste exhaust,gas exhaust,waste gas cowl

    Lab Fume Hoods valves,Lab water gas Faucets,Lab air taps,Lab fume exhaust,Fume extractor,Lab PP sink,Lab drying rack,Lab drainage pegboard,Pegboards & drip trays,Epoxy Pegboard Glassware Drying Rack,

    SHP84-flexible fume extraction arm Lab Fume Extractor/Exhaust,flexible extraction arm,fume exhaust arm,extraction hoodSHP84-flexible fume extraction arm Lab Fume Extractor/Exhaust,flexible extraction arm,fume exhaust arm,extraction hood



    SHP84-flexible fume extraction arm Lab Fume Extractor/Exhaust,flexible extraction arm,fume exhaust arm,extraction hood

    SHP84-flexible fume extraction arm Lab Fume Extractor/Exhaust,flexible extraction arm,fume exhaust arm,extraction hood

    Jiont:High grade PP.to be 360°swiveled,easy to dismantle, assemble &clean
    Sealing ring: Low-friction treated rubber
    Center bolt:304stainless steel
    Adjustable joint knob: Totally brass with a s/s bearing inside locked with center bolt
    Damper:To adjust air flow with a knob manually
    Dome/cup hood: High grade PP/PC
    Tube:75mm /PP
    Swing device: with 360°swing device,take fixed rack as centre, max enabing
    movement radius to 1600mm
    Installation Bracket: Injection of plastics from a complete Mold,mounting panel
    strongly connected to the joint

    Jiont:High grade PP.to be 360°swiveled,easy to dismantle, assemble &clean
    Sealing ring: Low-friction treated rubber
    Center bolt:304stainless steel
    Adjustable joint knob: Totally brass with a s/s bearing inside locked with center bolt
    Damper:To adjust air flow with a knob manually
    Dome/cup hood: High grade PP/PC
    Tube:75mm /PP
    Swing device: with 360°swing device,take fixed rack as centre, max enabing
    movement radius to 1600mm
    Installation Bracket: Injection of plastics from a complete Mold,mounting panel
    strongly connected to the joint



    1.Capability:

    1)Made of PVC material, high grade PP, SUS304 stainless steel, corrosion-proof, acid-proof, and alkali-proof;

    2)Movement scope is big, to be 360ºswiveled as center of bracket, 1240mm as radius; can be flexed freely inward the height scope of 720mm;

    3)The distance between of ornamental bracket and bracket is adjustable; the adjustable scope is 990mm-1450mm.

    4)The air adjustable knob can control the air flux;

    5)It is convenient to use, easy to take down, recombine and clean.



    2.Installation and using

    1)Choose the installation position according to the work location and indoor environment, at the ceiling bore according to bracket, use M8 screw fasting the bracket to ceiling;

    2)Put the flex tube into the pore of the drain wind tube, let tube sheath to lockup the flex tube and drain wind tube, to screw on the underpan;

    3)Screw on the collect air cover;

    4)Connect drain wind stomata to drain wind system;

    5)When to use, can push and pull collect air cover, made it aim at pump down position, and adjust air flex adjustable knob. After using screw on adjustable knob, shut off baffle, fold collect air cover and reset.



    3.Notice in application

    1.Having the press axletree and the rubber loop, if the joint become flexible, can screw on joint knob;

    2.Don’t overexertion when push and pull the collect air cover;

    3.The angle of flex tube and bracket don’t exceed 90º, or else rebound;

    4.Installation height: the distance of ceiling and collect air cover, Max. 2440mm, Min. 1710mm.

    4.Sketch map of installation
