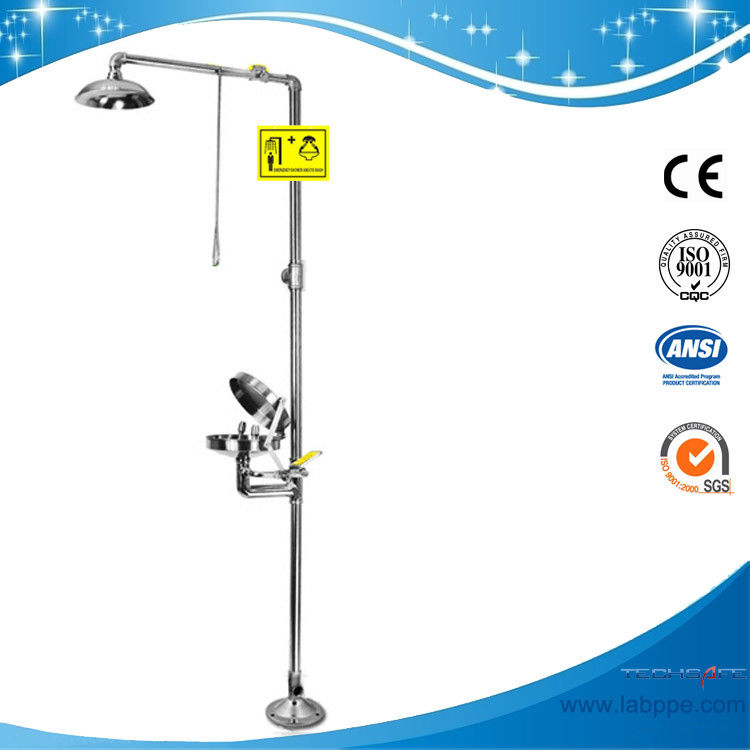

SH712BSC-Covered shower & eyewash station,SS304
Item no.:SH712BSC
Product name:Covered shower & eyewash station,SS304
Material:304 stainless steel
Sprayer head:,has dust shield cap,can be removed when eye wash operated
Bowl:ø300mm
Shower head:ø250mm
Valve:eye wash-1/2" & shower-1" ball valve;activated in 1 second
Pressure:0.2-0.6Mpa
More details,pls visit www.labppe.com
Emergency shower,Eyewash,eye wash,Eye wash stations,eye washing,safety showers,eye wash solution,bradley eye wash,Emergency eye wash station,Emergency safety shower,Eye safety,eye washer,
Personal Protective Equipment:Emergency shower & Safety eye wash,Drench shower,Safety shower,Face wash bath,Eyewash station,Emergency shower.OSHA,ANSI Z358.1-2004,CE certificate.ISO9001:2008.
| Combination Unit |
Stainless Steel Combination Unit Emergency Shower and Eye/Face Wash |
| Pipe Standard: |
1-1/4 inch stainless steel pipe (304SS) and fittings, with stainless steel rod providing additional support overhead; 5 inch diameter floor flange |
| Shower Head: |
shall be between 82" (208.3 cm) and 96" (248.3 cm) above floor. |
| Valve and Actuator |
Stay open Type 316 stainless steel ball valve actuated by rigid stainless steel pull rod. |
| Hands-free” stay-open valve |
Hands-free” stay-open valve activates in one second or less. The eye wash should also include be foot Controls. |
| Means of activating the emergency fixtures by stepping on a foot pedal which activates the stay-open valves of the eye, eye/face wash and or shower. These can be used in conjunction with standard |
| Category of specification |
|
| Requirement |
| |
emergency fixture activation methods. |
| At 60" (152.4 cm) above floor |
At 60" (152.4 cm) above floor, the water pattern must be at least 20" (50.8 cm) in diameter. |
| |
| actuator |
Easily located, accessible actuator no higher than 69" (173.3 cm) above floor |
| Eye/Face Wash: |
Eye/Face Wash: |
| Eyewash Outlet heads |
shall be positioned between 33" (83.8 cm) and 45" (114.3 cm) from the floor. |
| Protect outlet head |
Protect outlet heads from airborne contaminants. |
| Valve actuator |
shall be easy to locate and readily accessible to user. |
| Hands-free” stay-open valve |
shall activate in one second or less. |
| Category of specification |
|
| Requirement |
| Unit must deliver (litre must deliver) |
at least 3.0 GPM (11.4 litres) (for eye/face wash) or 0.4 GPM (1.5 litres) (for eye wash) for 15 minutes. |
| 5.2 Size, Testing Area and Weight (ergonomet ric) |
|
| 5.3 Spare part |
All require components shall be supplied with the set |
| 6 Authenticat ed Testimonial/ Credential/ Certificate/ and Document |
6.1 All documentations shall be in English and submitted in hard and soft copy. |
| |
6.2 The bidder shall submit the documents includes, but not limited, maintenance and user manual, |
| brochure of the machine, application notes and certificates |
| 7 |
7.1 Instrument shall be packed using over load and over travel protection built In |
| Packaging |
| |
7.2 Appropriate shock watch label should be emplaced in the package |
