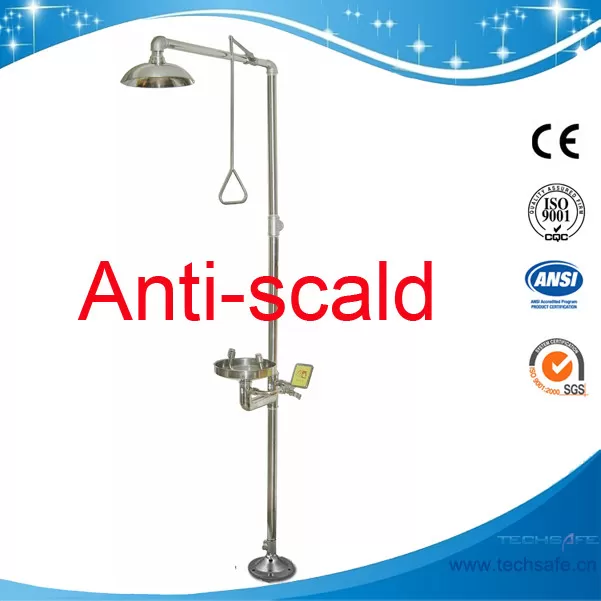

SH712BSHP-Heat proof SAFETY SHOWER & EYE WASH COMBINATION UNIT WITH THERMAL MIXING VALVE
Item no.:SH712BSHP
Product name:Foot pedal SUS304 Safety shower & eyewash station,SS304 emergency shower Eyewash
Material:304 stainless steel
Sprayer head:,has dust shield cap,can be removed when eye wash operated
Bowl:ø300mm
Shower head:ø250mm
Valve:eye wash-1/2" & shower-1" ball valve;activated in 1 second
Pressure:0.2-0.6Mpa
Anti-scald emergency shower eyewash, for when the accident occurred, acids, alkalis and other harmful substances in the eye splash Eyes, face, hands, when the body, go to a doctor before the emergency shower handling equipment, can quickly reduce
And reduce the damage the injured for medical treatment before. Eyewash widely used in petroleum, chemical, coal chemical, solar,Semiconductor, food and beverage, pharmaceutical manufacturing and dangerous goods leak possible environmental and workplace, the user You should read the instructions.
More details,pls visit www.labppe.com
| NO. |
Name |
Quantity |
| 1 |
Shower hesd |
1set |
| 2 |
Stainless steel pipe |
3set |
| 3 |
Shower handle |
1set |
| 4 |
Eye Wash head |
1set |
| 5 |
Eye wash bowl |
1set |
| 6 |
Stainless steel pipe |
1set |
| 7 |
Switch Push board |
1set |
| 8 |
bracket |
1pc |
| 9 |
Foot treadle |
1set |
| 10 |
Foot treadle chain |
1pc |
| 11 |
Spare parts |
1 bag |
| No. |
Conk out |
Cause |
Solution |
| 1 |
The eye wash shower
outlet flux is small
|
A the adjustment rob is overdo
B the adjustment valve is blocked
|
A turn the rob anti-clockwise
B wash the valve
|
| 2 |
The eye wash shower outlet flux is large |
The adjustment rob is under-do |
Turn the rob clockwise |
| 3 |
The seep in the bowl is more |
The outlet is blocked |
Remove the foreign object |
| NO. |
Name |
Quantity |
| 1 |
Sprayers head |
1set |
| 2 |
Drench hose |
1set |
| 3 |
Up part |
1set |
| 4 |
Down part |
1set |
| 5 |
Bottom Bracket |
1pc |
| 6 |
Eye Wash Basin |
1set |
| 7 |
Eye Wash Sprayer |
1set |
| 8 |
Pull rob |
1set |
| 9 |
Push board |
1pc |
| 10 |
Spare parts |
1bag |
*Structure
1. Polishing.
2.SS ball valve and screw seal controled shower and eye wash separately.
3.Set the seepage hole in the pipe of eye wash that can drain off the residual water,which clean pipe to prevent rust.
*Main material: SUS304 stainless steel
*Installation and maintenance
1. You should check the type of products, certificate of approval, instruction and the packing list for another time.
2. The location of the emergency equipment should be installed within 10 seconds walking time or 15 meters from the hazard.
3. Installation and maintenance:
A.connect the T-piece stainless steel pipe of outlet,inlet,body shoer pipe ,then connect with the bracket.
B.fix the shower handle and shower head on the stainless steel pipe.
C.connect the eye wash bowl with body stainless steel pipe.
D.intal the eye wash shower into the pipe through eye wash bowl.
E.instal the push board and foot treadle.
F. choose the raght place to connect the pipe of water inlet and fix the bracket tightly.
G.The adjust valve is in the middle of the two sprayers which can adjust the flux. It may need to adjust because of the different pressure and flux; though we adjust it before delivering you. The method of adjust: unscrew the helmet, adjust the adjustive pole with screwdriver, and turn it clockwise, the flux will be small, and turn it widdershins, the flux will be bigger.
